Product details:

Product Description

This 1/2 300ft PEX pipe is commonly used for plumbing, radiant & hydronic systems. It is quick to install, flexible and used on hot/cold potable water lines. EVOH oxygen barrier layer, prevent O2 from penetrating into tubing system.
Standards, Certifications & Approvals
1/2 300ft PEX Tube
Industrial-grade pex tubing, crack-resistant, leakage-proof and anti-aging after long year's use. Nominal Diameter: 1/2"; Tube Length: 1000ft, longer than normal products.
EVOH Oxygen Barrier
Crafted with a layer of EVOH for O2 barrier, prevent oxygen and external elements from penetrating or corrode the metal components. Also, prevent the existence of germ in water.
5 Bending Radius
Expands and shrinks with temperature changes and support freeze resistant, this tube is with min.5 bending radius(industry standard for 1/2 pipe) and excellent flexibility.
Different Tube Connections
Can be connected in many ways: Crimp connection system(crimp tool rings fittings).; Cinch (clamp) connection system; Press system(by Viega); Compression PEX Fittings.
Compatible Install Method
Suitable for many floors, like: (non-) structural concrete slabs; staple-up (between joists) radiant floor heat; "Sandwich type radiant heating; Snow & ice melting systems etc.

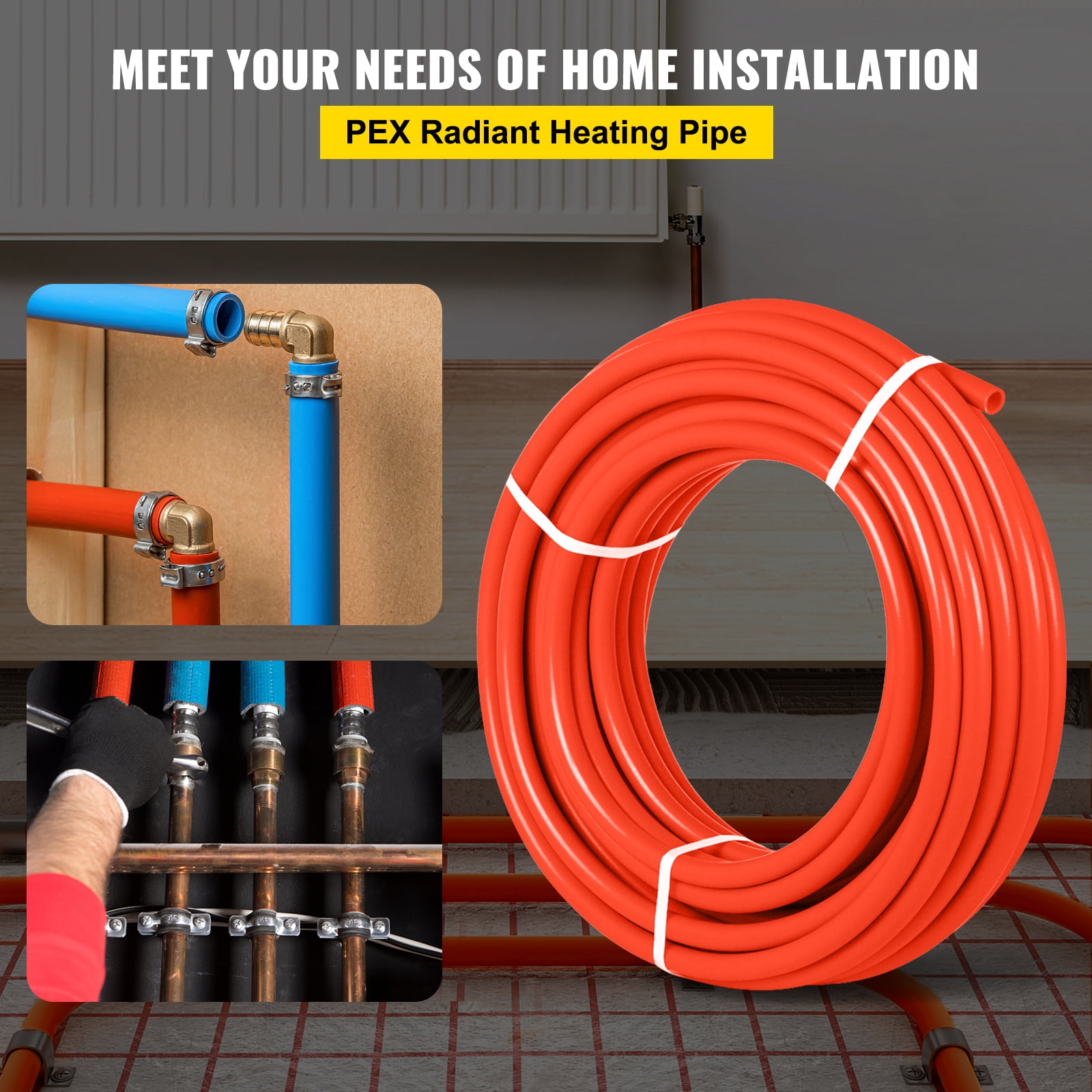

Commercial & Home Use
Multi-use water pipe, applied for plumbing, radiant & hydronic systems, and potable water. Keep quick hot & cold water flows. Red color just for easier identification.

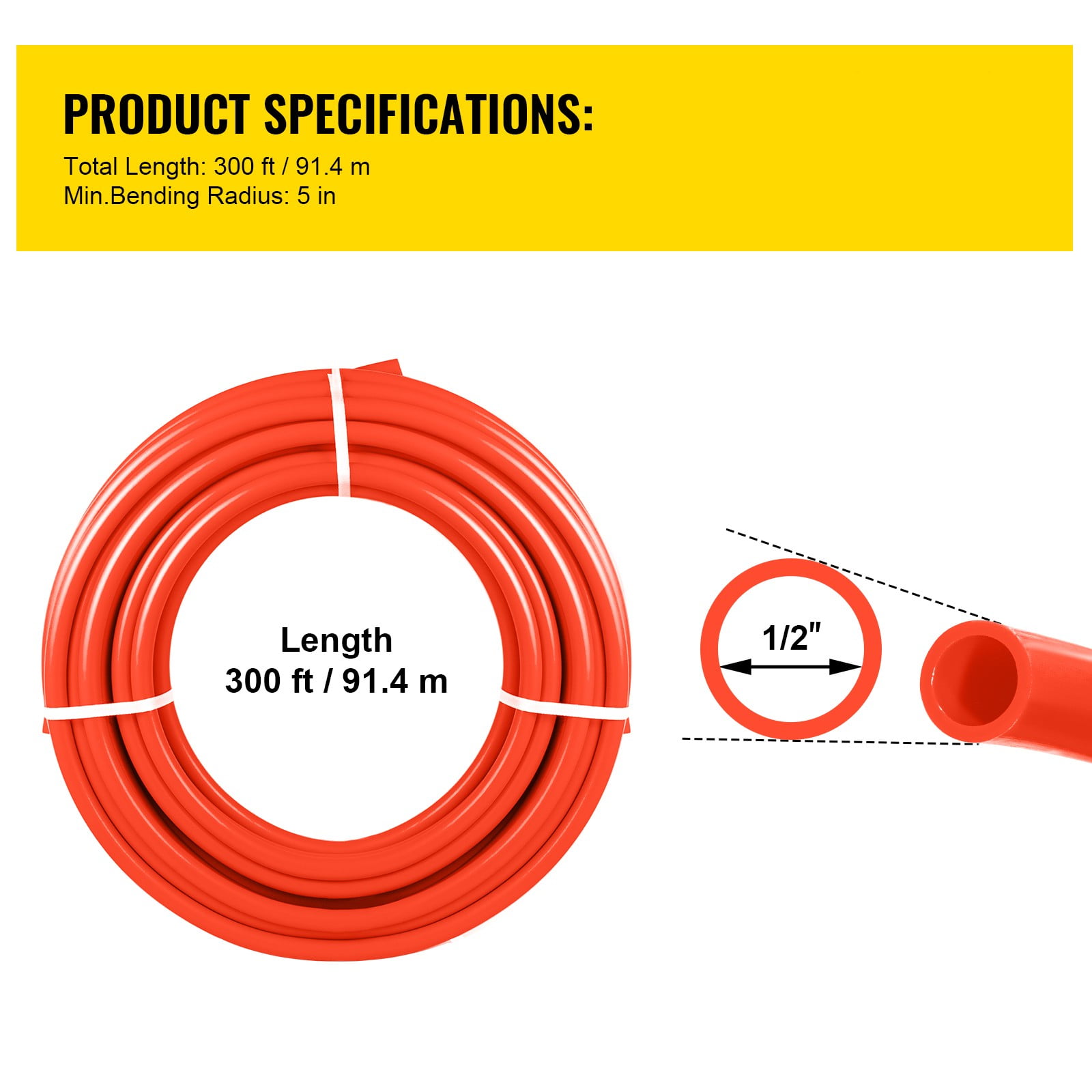

Specifications

Type: PEX Tube(Oxygen Barrier)
Total Length: 300FT
Nominal Diameter: 1/2

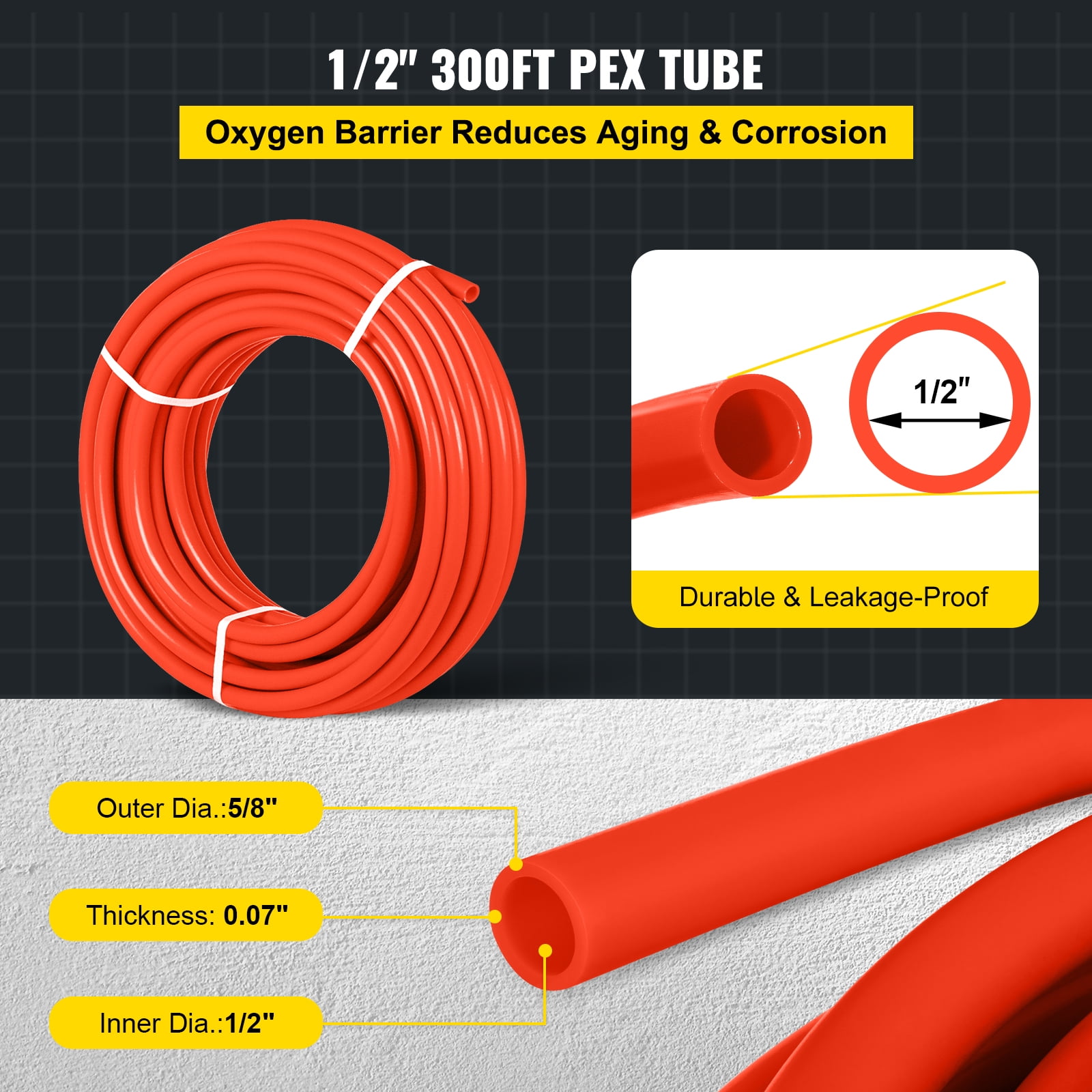

Inside Diameter: 0.475
Outside Diameter: 0.625
Warranty: 25-year manufacturer's warranty
Pressure Ratings: 80psi @ 200F, 100psi @ 180F, 160psi @ 73F
Min.Bending Radius: 5"(industry standard for 1/2 PEX)
ANSI/NSF 14, ANSI/NSF61, NSF-Pw (certified for radiant heating applications).
UPC listed by IAPMO.
SDR-9 dimensional standards.

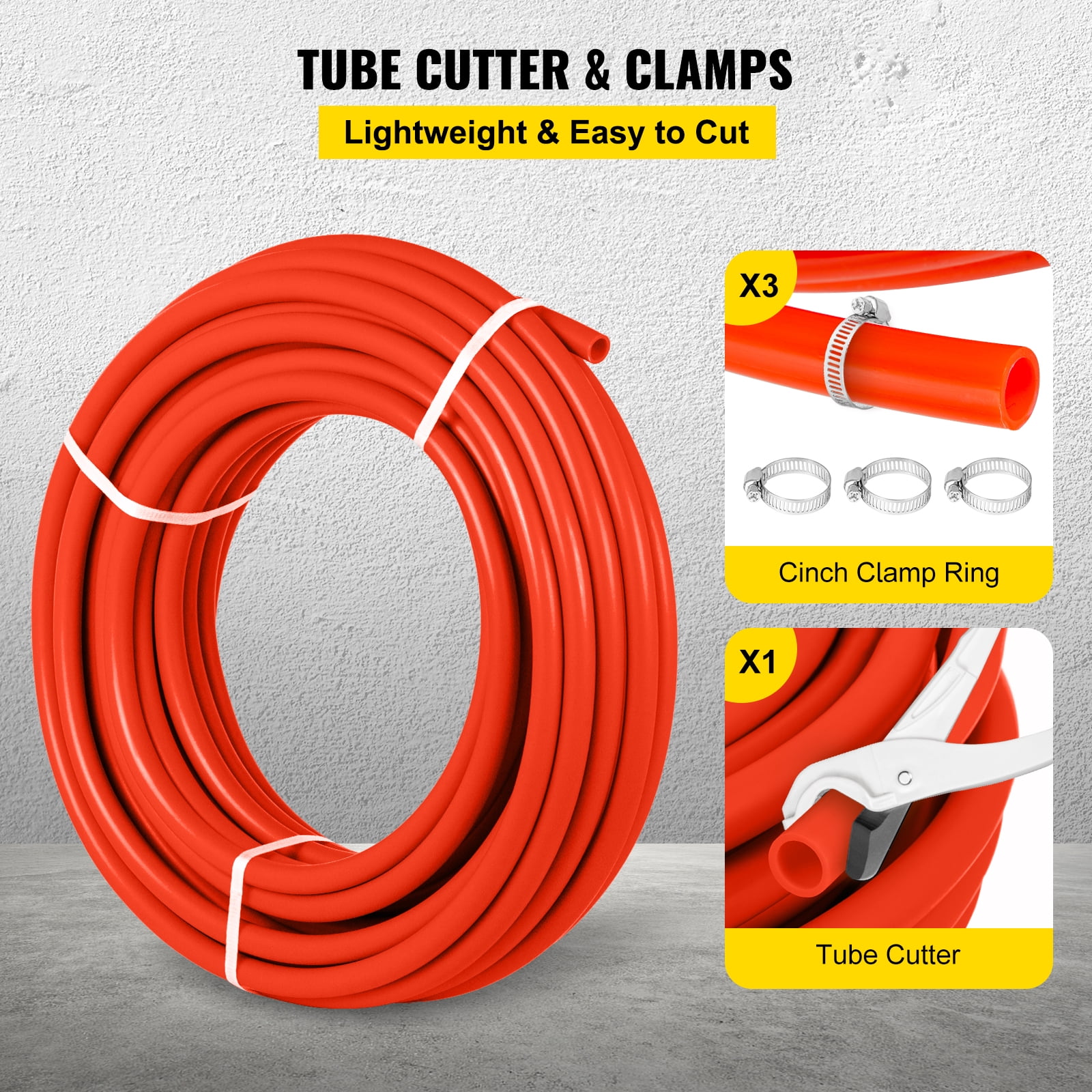

PackageContent

1 x 300FT 1/2 Oxygen Barrier PEX Tube
1 x Tube Cutter
10 x Cinch Clamp Ring
Brand:BENTISM
Assembled Product Weight:18 lb
Manufacturer Part Number:451169294
Manufacturer:BENTISM
Assembled Product Dimensions (L x W x H):300.00 x 5.00 x 0.50 Inches
